Steel King – Steel Guard heavy duty guard & Armor Guard industrial railing.
Protecting your people, product, and physical plant from collisions is one of the best investments you can make.
In 1986, Steel King set out to design the toughest guard rail system in the industry. After more than 40,000 installations, no other brand exceeds the rugged design of Steel Guard®.
Now that’s one tough rail!
- Choose the height that works best for your system. Steel King’s Steel Guard is available in either a single or double high system.
- Choose a post type. Standard corner posts are available. Center posts are available in standard, standard offset, end offset and side offset.
- Choose your rail lengths. The rails are measured from post to post, on center. The actual rail component will be 4” shorter than the specified length on Steel Guard. Lift out pockets increase center to center dimension by 1”.

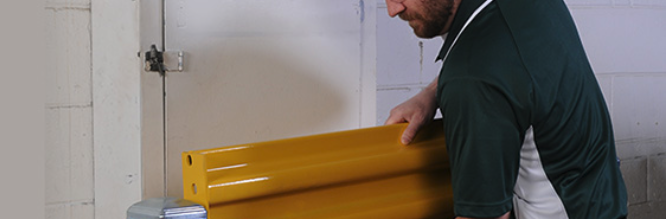

- Choose bolted or the lift out rail system. The lift out rail system enables easy access when needed and still provides equipment protection.
Protect these crucial areas of your facility with Steel Guard Industrial Railing

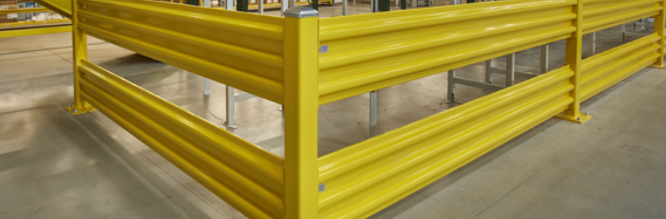

Steel Guard – Industrial Railing
Protect workers, machinery, loading docks and pallet rack from damage with Steel Guard’s pre-fabricated, modular design.
- Available in single high or double high versions.
- Posts are 4″ square structural tubing on a 10″ square base plate. Posts include four 3/4″ x 5-1/2″ anchors and cap.
- Rails are 14-1/2″, 11-gauge, 3 ribbed rails. Bolted or lift-out versions available.
Heavy Duty Guard Rail Posts
| Model | Description | High | Weight |
|---|---|---|---|
| SCLYW | 18" Center Post | Single | 40lbs |
| SCLEYW | 18" Offset End Post | Single | 40lbs |
| SCLSYW | 18" Offset Side Post | Single | 40lbs |
| SCOYW | 18" Corner Post | Single | 40lbs |
| SCOOYW | 18" Offset Corner Post | Single | 40lbs |
| SREYW | 18" Reinforcement Post | Single | 40lbs |
| DCLYW | 42" Center Post | Double | 65lbs |
| DCLEYW | 42" Offset End Post | Double | 65lbs |
| DCLSYW | 42" Offset Side Post | Double | 65lbs |
| DCOYW | 42" Corner Post | Double | 65lbs |
| DCOOYW | 42" Offset Corner Post | Double | 65lbs |
| DREYW | 42" Reinforcement Post | Double | 65lbs |
Heavy Duty Bolted Guard Rails
| Model | Description | Weight |
|---|---|---|
| GR01YW | 1' Long Rail | 14lbs |
| GR02YW | 2' Long Rail | 24lbs |
| GR03YW | 3' Long Rail | 34lbs |
| GR04YW | 4' Long Rail | 44lbs |
| GR05YW | 5' Long Rail | 54lbs |
| GR06YW | 6' Long Rail | 64lbs |
| GR07YW | 7' Long Rail | 74lbs |
| GR08YW | 8' Long Rail | 84lbs |
| GR09YW | 9' Long Rail | 94lbs |
| GR10YW | 10' Long Rail | 104lbs |
Heavy Duty Lift Out Guard Rails
| Model | Description | Weight |
|---|---|---|
| GR01LYW | 1' Long Lift Out Rail | 27lbs |
| GR02LYW | 2' Long Lift Out Rail | 37lbs |
| GR03LYW | 3' Long Lift Out Rail | 46lbs |
| GR04LYW | 4' Long Lift Out Rail | 54lbs |
| GR05LYW | 5' Long Lift Out Rail | 66lbs |
| GR06LYW | 6' Long Lift Out Rail | 74lbs |
| GR07LYW | 7' Long Lift Out Rail | 87lbs |
| GR08LYW | 8' Long Lift Out Rail | 94lbs |
| GR09LYW | 9' Long Lift Out Rail | 106lbs |
| GR10LYW | 10' Long Lift Out Rail | 114lbs |
Accessories & Replacement Parts
| Model | Description | Weight |
|---|---|---|
| TUBE-CAP | 4" Square Replacement Post Cap | .45lbs |
| BCSG1010 | Steel Guard Base Cover | 8.5lbs |
