Nashville Wire
Standard Channel, Double waterfall for 1-5/8” step beams

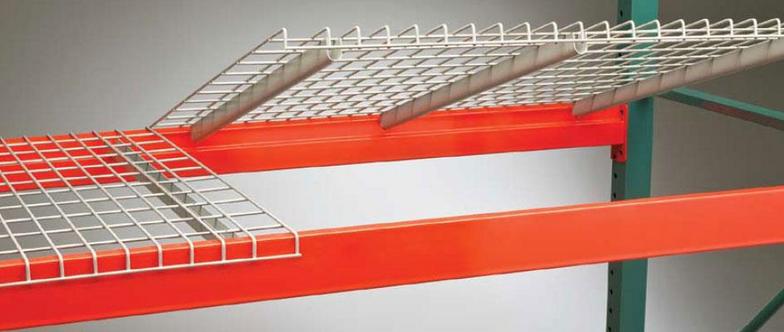

Wire Mesh Decking

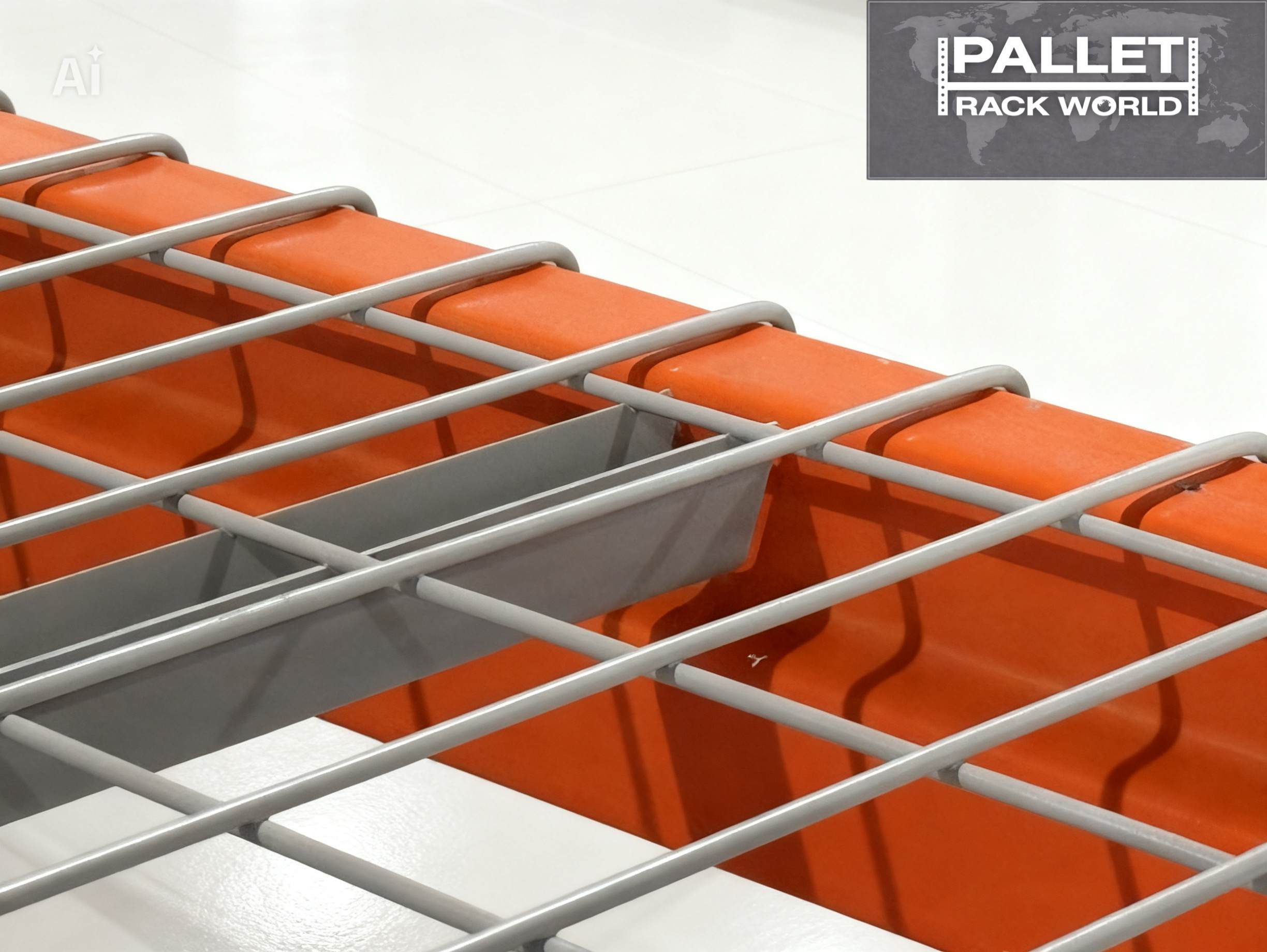

Nashville Wire Mesh Deckning for Standard 1-5/8'' Step Beams, Double Waterfall



Standard channel wire mesh decks from Nashville Wire are designed specifically for standard 1-5/8″ step beams, featuring durable U-shaped channel supports that sit securely inside the beam step for maximum strength and stability. Built from high-quality steel with a powder-coated finish, these decks provide reliable load support, improved visibility, and enhanced fire safety by allowing light, air, and sprinkler water to pass through. The waterfall edge design ensures a secure fit on the beam while allowing for quick, drop-in installation with no hardware required.

Size Part No. Side / Dimensions Capacity Weight Price
24 x 46D2446-AA-3B124" Deep x 46" Wide328010.2$21.00
30 x 46D3046-AA-3B130" Deep x 46" Wide320012.8$25.00
36 x 34D3634-AA-3B136" Deep x 34" Wide260012.9$24.00
36 x 46D3646-AA-3B136" Deep x 46" Wide270015.5$27.00
36 x 46D3646-BB-3B136" Deep x 46" Wide320018.2$32.00
36 x 52D3652-AA-3B136" Deep x 52" Wide270016.6$30.00
36 x 58D3658-AA-3B136" Deep x 58" Wide270017.8$32.00
42 x 34D4234-AA-3A142" Deep x 34" Wide255017.2$29.00
42 x 46D4246-CA-3B142" Deep x 46" Wide220016.8$27.00
42 x 46D4246-CA-3A142" Deep x 46" Wide250018.5$29.00
42 x 46D4246-BB-3A142" Deep x 46" Wide300023.4$38.00
42 x 46D4246-BB-4A142" Deep x 46" Wide360026.2$42.00
42 x 52D4252-AA-3B142" Deep x 52" Wide225019.5$33.00
42 x 52D4252-AA-3A142" Deep x 52" Wide270021.6$35.00
42 x 52D4252-BB-4A142" Deep x 52" Wide365028.5$46.00
42 x 58D4258-AA-3A142" Deep x 58" Wide275022.9$39.00
44 x 46D4446-AA-3A144" Deep x 46" Wide255020.5$35.00
44 x 52D4452-AA-3A144" Deep x 52" Wide275022.4$38.00
48 x 34D4834-AA-3A148" Deep x 34" Wide220019.6$34.00
48 x 46D4846-AA-3B148" Deep x 46" Wide190020.1$35.00
48 x 46D4846-AA-3C148" Deep x 46" Wide250023.9$37.00
48 x 46D4846-BB-4A148" Deep x 46" Wide310029.7$48.00
48 x 52D4852-BA-3A148" Deep x 52" Wide250026.8$44.00
48 x 58D4858-BA-3A148" Deep x 58" Wide250028.5$48.00
60 x 46D6046-BA-4A160" Deep x 46" Wide230034.8$55.00

Nashville Wire
Flared Channel, Double waterfall for box, structural or step beams

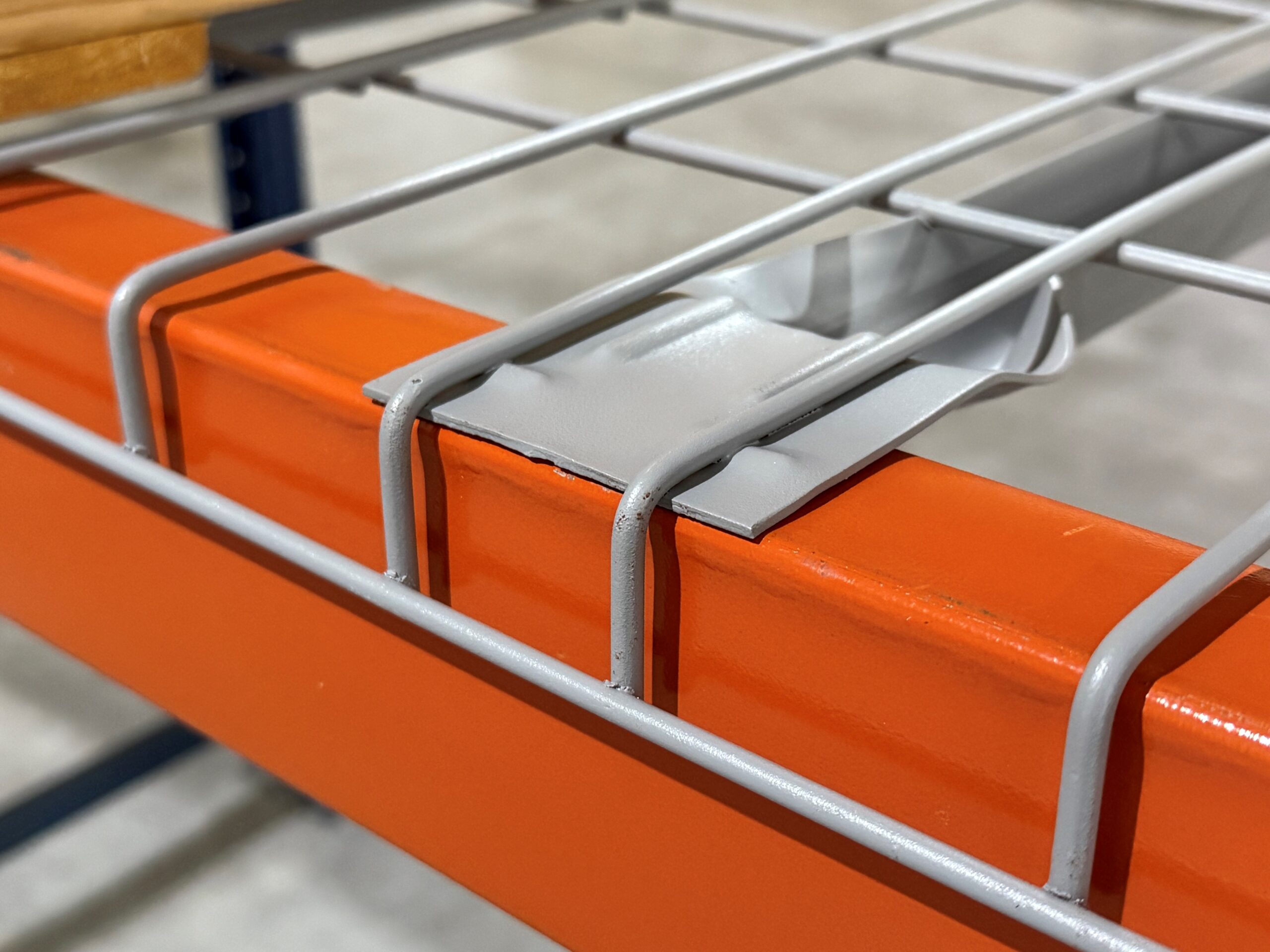

Universal Flared Wire Mesh Decking for pallet racking systems.
Size Part No. Size / Dimensions Capacity Weight Price
24 x 46D2446-AA-3B224" Deep x 46" Wide250010.8$22.00
36 x 46D3646-AA-3A236" Deep x 46" Wide250017.7$29.00
36 x 52D3652-AA-3A236" Deep x 52" Wide250019.2$31.00
42 x 46D4246-AA-3A242" Deep x 46" Wide210021$33.00
42 x 46D4246-EA-3A242" Deep x 46" Wide250025$37.00
42 x 46D4246-BB-4A242" Deep x 46" Wide300027.3$42.00
42 x 52D4252-EA-3A242" Deep x 52" Wide250025$42.00
44 x 46D4446-EA-3A244" Deep x 46" Wide250025.8$39.00
48 x 46D4846-EA-4A248" Deep x 46" Wide250031.6$47.00
48 x 52D4852-EA-4A248" Deep x 52" Wide250034.2$49.00

Flared channel wire mesh decks from Nashville Wire are a truly universal solution designed to fit structural pallet rack beams, box beams, and standard step beams. The flared channel design allows the deck to sit securely across multiple beam types without the need for custom configurations. Built from high-strength steel with a durable finish, these decks deliver reliable load support, improved airflow, and enhanced fire safety. Easy to install and incredibly versatile, they’re the go-to choice when you need one deck that works across your entire warehouse system.

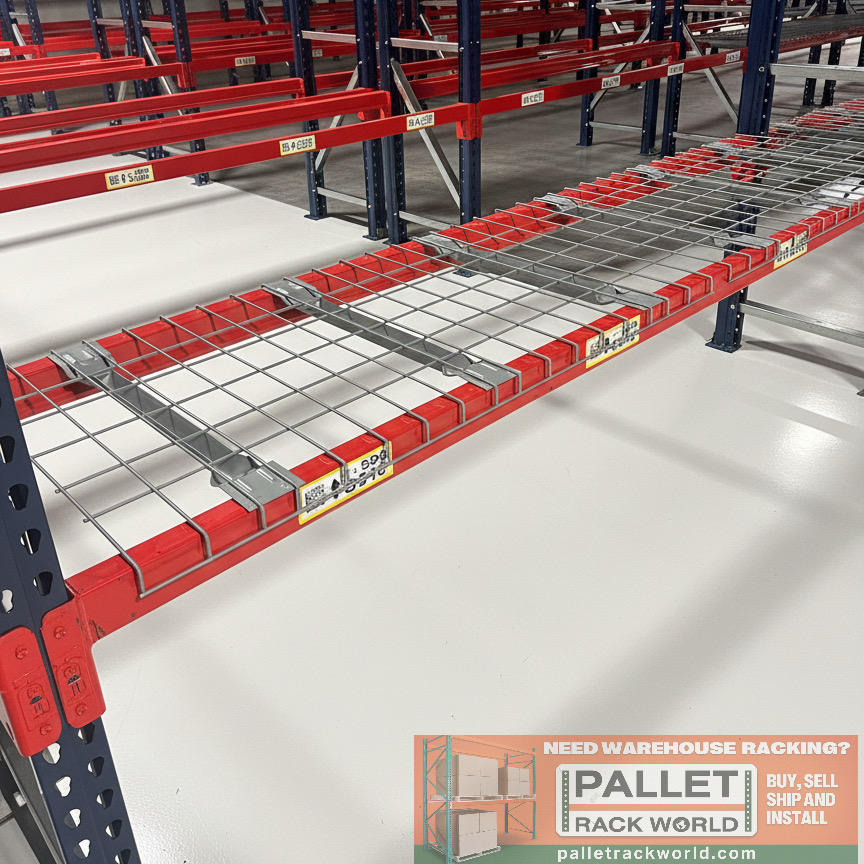

Pallet Racking with Flared Wire Mesh Decking for Step, Box or Structural beams. These decks are universal!

Frequently Asked Questions About Nashville Wire Decks

What are wire mesh decks used for?
Wire mesh decks are used on pallet racking systems to support pallets, cartons, and stored inventory. They improve rack safety, visibility, airflow, and fire sprinkler performance.
What types of Nashville Wire decks are available?
Nashville Wire offers standard double waterfall decks, flared channel decks, inverted channel decks, inside waterfall decks, and flush mount wire decks.
What is a standard channel wire deck?
A standard channel wire deck is designed for standard 1-5/8" step beams. The support channels sit securely inside the beam step, while the waterfall edge wraps over the front and rear beams.
What is a flared channel wire deck?
Flared channel wire decks are a universal option designed to fit structural pallet rack beams, box beams, and standard step beams.
Are Nashville Wire decks made in the USA?
Yes. Nashville Wire decks are proudly made in the USA and are known for quality construction, reliable fit, and dependable performance.
Do Nashville Wire decks ship quickly?
Many Nashville Wire deck sizes are available for quick ship from Nashville, TN, making them a great option for fast warehouse projects and rack installations.
What weight capacities are available?
Wire deck capacities vary by size and channel configuration, with many common options ranging from approximately 2,000 lbs to over 3,600 lbs per deck.
Do wire decks improve warehouse safety?
Yes. Wire decks help prevent pallets and products from falling through rack levels. They also allow light, air, and sprinkler water to pass through the rack system.
Do wire mesh decks require hardware?
Most wire mesh decks are drop-in style and do not require bolts, screws, or special installation hardware.
How do I choose the right Nashville Wire deck?
To choose the right wire deck, confirm your beam type, rack depth, deck width, and required load capacity. Pallet Rack World can help match the correct Nashville Wire deck to your pallet rack system.

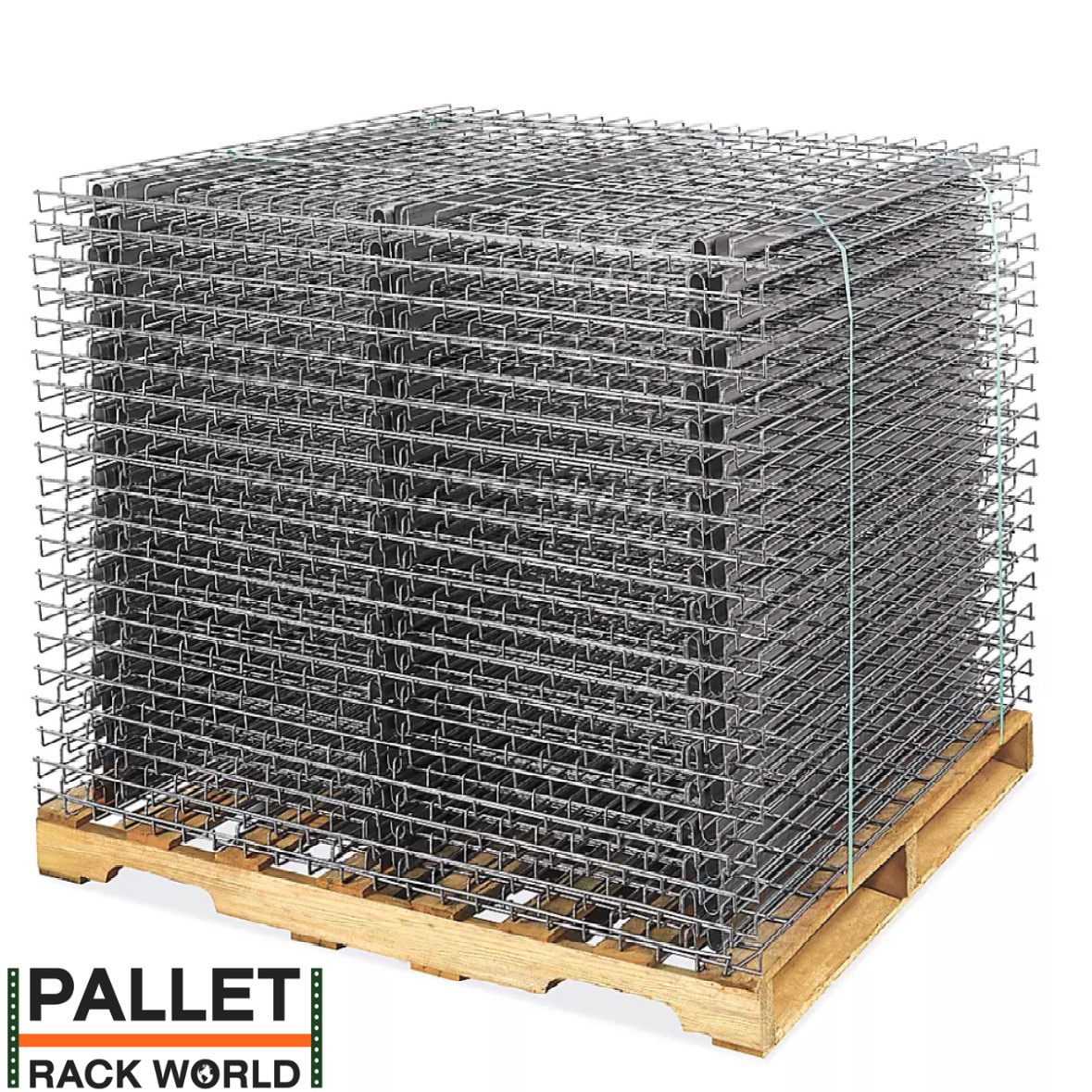

Pallet of Flared Wire Mesh Decks
