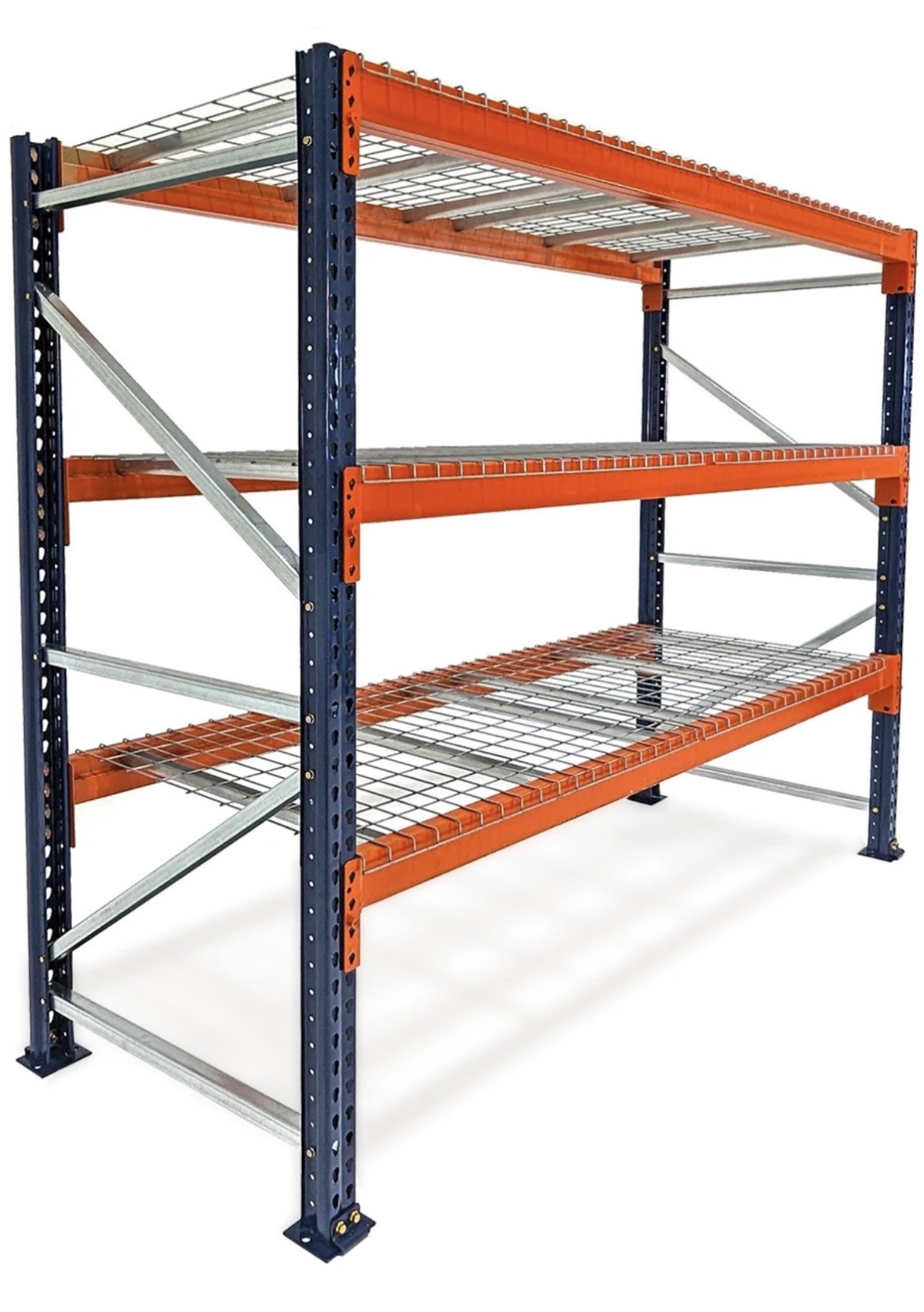

Mecalux Teardrop Pallet Rack In Stock in Denton, TX
Pallet Rack World offers high-quality Mecalux teardrop pallet racking ready for immediate shipment from our Sumter, South Carolina location.
Designed for strength, flexibility, and compatibility with industry-standard systems, Mecalux teardrop racks are ideal for warehouses, distribution centers, and storage facilities.
Delivery and professional installation available — our team at Pallet Rack World makes it easy to get your storage system up and running quickly.
Request a Quote Today →| Teardrop Style - Bolted Frames (Blue) | ||||||
|---|---|---|---|---|---|---|
| Capacity | Description | Height | Depth | Part # | Sale $ Each | Weight Each |
| 20,867 | 314 (14GA) | 8' | 36" | T0209399 | $89.00 | 56.22 |
| 20,867 | 314 (14GA) | 8' | 42" | T0209400 | $95.00 | 58.19 |
| 20,867 | 314 (14GA) | 8' | 48" | T0209401 | $99.00 | 60.2 |
| 20,867 | 314 (14GA) | 12' | 36" | T0209411 | $130.00 | 75.21 |
| 20,867 | 314 (14GA) | 12' | 42" | T0209412 | $135.00 | 77.13 |
| 20,867 | 314 (14GA) | 12' | 48" | T0209413 | $140.00 | 79.1 |
| 20,867 | 314 (14GA) | 16' | 36" | T0209423 | $185.00 | 101.18 |
| 20,867 | 314 (14GA) | 16' | 42" | T0209424 | $189.00 | 103.78 |
| 20,867 | 314 (14GA) | 16' | 48" | T0209425 | $195.00 | 106.44 |
| 20,867 | 314 (14GA) | 20' | 36" | T0209444 | $220.00 | 126.66 |
| 20,867 | 314 (14GA) | 20' | 42" | T0209446 | $225.00 | 129.95 |
| 20,867 | 314 (14GA) | 20' | 48" | T0209449 | $235.00 | 133.32 |
| 30,032 | 312 (12GA) | 20' | 42" | T0209555 | $275.00 | 166.35 |

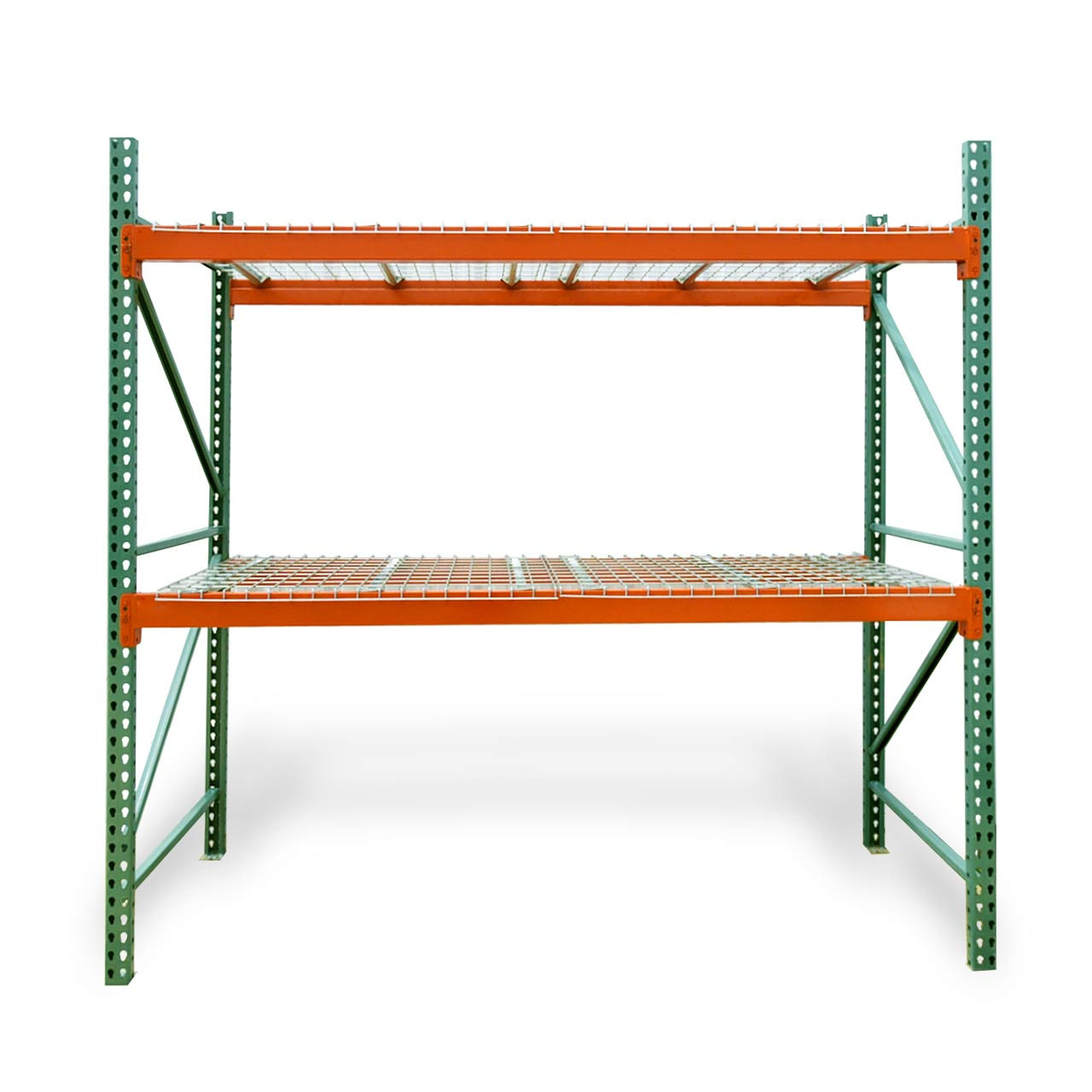

| Teardrop Style - Welded Frames (GREEN) | ||||
|---|---|---|---|---|
| Capacity | Height x Depth | Part # | Sale $ Each | Weight |
| 23,900lbs | 12'H x 42"D | U0208408 | $155.00 | 78 |
| 23,900lbs | 16'H x 42"D | U0208432 | $199.00 | 103 |
| 28,400lbs | 16'H x 42"D | U0208812 | $240.00 | 123 |
| 28,400lbs | 20'H x 42"D | U0208836 | $299.00 | 154 |
| Step - Beams (Orange) | ||||||
|---|---|---|---|---|---|---|
| Capacity (lbs) | Beam | Length | Description | Part # | Sale $ Each | Weight Each |
| 5,610 | IK27E F3M | 48" | Step Beam (2 3/4" Face) | U0200310 | $24.00 | 10.71 |
| 4,170 | IK36E F3M | 96" | Step Beam (3 21/32" Face) | U0200338 | $43.00 | 22.03 |
| 5,370 | IK40E F4M | 96" | Step Beam (4" Face) | U0200366 | $45.00 | 23.86 |
| 5,960 | IK45E F4M | 96" | Step Beam (4 1/2" Face) | U0200387 | $50.00 | 25.53 |
| 6,820 | IK50E F4M | 96" | Step Beam (5" Face) | U0200558 | $55.00 | 27.14 |
| 5,380 | IK45E F4M | 108" | Step Beam (4 1/2" Face) | U0200388 | $55.00 | 28.34 |
| 6,150 | IK50E F4M | 108" | Step Beam (5" Face) | U0200561 | $59.00 | 30.14 |
| 6,250 | IK59E F5M | 144" | Step Beam (5 15/16" Face) | U0200428 | $89.00 | 44.42 |
| 7,110 | IK65E F5M | 144" | Step Beam (6 9/16" Face) | U0200438 | $95.00 | 47.4 |
Accessories - Mecalux (Blue Bolted Uprights)
| Description | Part # | Sale $ Each | Weight |
|---|---|---|---|
| 6" Row Spacer w/hardware (Galvanized) | T0047972 | $9.00 | 1lbs |
| 8" Row Spacer w/hardware (Galvanized) | T0047973 | $9.50 | 1.5lbs |
| 10" Row Spacer w/hardware (Galvanized) | T0047974 | $9.50 | 1.5lbs |
| 12" Row Spacer w/hardware (Galvanized) | T0047975 | $9.50 | 1.7lb |
| Wall Tie Connector (Galvanized) | T0032374 | $3.25 | 1lbs |
| Double Flanged Pallet Support 36" | U0211330 | $9.99 | 5lbs |
| Double Flanged Pallet Support 42" | U0211331 | $11.50 | 6lbs |
| Double Flanged Pallet Support 48" Cap | U0211333 | $12.75 | 7lbs |
| Column Protector U S-80 Safety Yellow | T0200839 | $45.00 | 15lbs |
| Shims U 3P G=11 (TD U312/TD U314) | T0200872 | $2.50 | 1lbs |
| ANCHOR IHAAH 1/2-13 X 5 1/2 HILTI | U0074596 | $6.75 | 1lbs |
| Anchor Dolts 1/2 x 4 1/4" | T0034139 | $2.50 | .22lbs |
| WIRE DECK PWMD 42X46-22 GLV | U0212012 | $33.00 | 16lbs |
| Mecalux Blue Touch-up Spray Paint 16oz | T0062096 | $25.00 | 1lbs |
| Interlake Green Touch-up Spray Paint 16oz | U0074709 | $25.00 | 1lbs |
| Mecalux Orange Touch-up Spray Paint 16oz | U0077720 | $25.00 | 1lbs |
Accessories - Interlake (Green Welded Uprights)
| Description | Part # | Sale $ Each | Weight |
|---|---|---|---|
| 6" Row Spacer w/hardware (Orange) | U0075880 | $13.14 | 1.37 |
| 8" Row Spacer w/hardware (Orange) | U0075882 | $15.05 | 1.61 |
| 10" Row Spacer w/hardware (Orange) | U0075883 | $15.98 | 1.85 |
| 12" Row Spacer w/hardware (Orange) | U0075884 | $16.97 | 2.1 |
| 6" Wall Tie w/hardware (Orange) | U0075993 | $6.32 | 1.23 |
| 12" Wall Tie w/hardware (Orange) | U0075995 | $8.60 | 1.95 |
| Double Flanged Pallet Support 36" Cap. 1,545 lbs/ea | U0211330 | $9.92 | 4.82 |
| Double Flanged Pallet Support 42" Cap. 1,300 lbs/ea | U0211331 | $11.40 | 5.59 |
| Double Flanged Pallet Support 48" Cap. 1,122 lbs/ea | U0211333 | $12.83 | 6.35 |
| 24" Column Protector IK IA571L w/hardware (Orange) | U0108385 | $19.45 | 6.57 |
| SHISHIM IHASB 0.120X 3.375 X 4.500 3H | U0075045 | $1.60 | 0.48 |
| ANCHOR IHAAH 1/2-13 X 5 1/2 HILTI | U0074596 | $6.78 | 0.32 |
| Anchor Bolts 1/2" x 4 1/4" | T0034139 | $2.62 | 0.22 |
| WIRE DECK PWMD 42X46 -22 -GLV | U0212012 | $33.08 | 15.01 |
| Interlake Green Touch-up Spray Paint 16oz | U0074709 | $26.92 | 1 |
| Mecalux Orange Touch-up Spray Paint 16oz | U0077720 | $26.92 | 1 |
| Mecalux Blue Touch-up Spray Paint 16oz | T0062096 | $26.92 | 0.8 |
